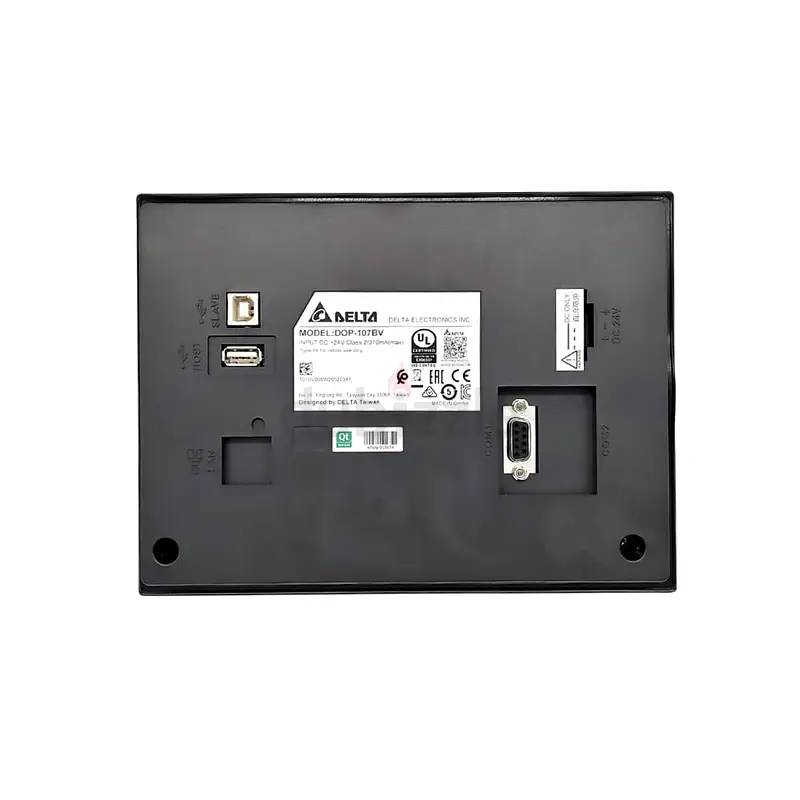

7″ TFT LCD display with 65,536 colours (16-bit) and a resolution of 800 × 480 pixels. Bright LED backlight (typical brightness ~400 cd/m²) and a display range of approx. 154.08 mm × 85.92 mm. Touchscreen: 4-wire resistive, capable of over 1 000 000 touch operations (in many spec sheets) for durability. Core processing: ARM Cortex-A8 @ 800 MHz. Memory: 256 MB Flash ROM + 256 MB RAM (various suppliers note this) Communications: One USB Slave (USB 2.0) + one USB Host (USB 2.0) Serial ports: COM1 (RS-232 / RS-485), COM2 (RS-422 / RS-485) (depending on model) Panel front rating: IP65 / NEMA 4X (front bezel) suitable for indoor panel mounting and industrial environments. Power supply: 24 V DC (-15%/+15% typical) — many datasheets specify this. Power consumption: approx. 8.6 W (max) in many specifications. Operating temperature: 0 °C to +50 °C; Storage temperature: -20 °C to +60 °C. Mechanical dimensions: Approx. 215 × 161 × 35.5 mm (W×H×D). Mounting cut-out: approx. 196.9 × 142.9 mm. Weight ~700 g

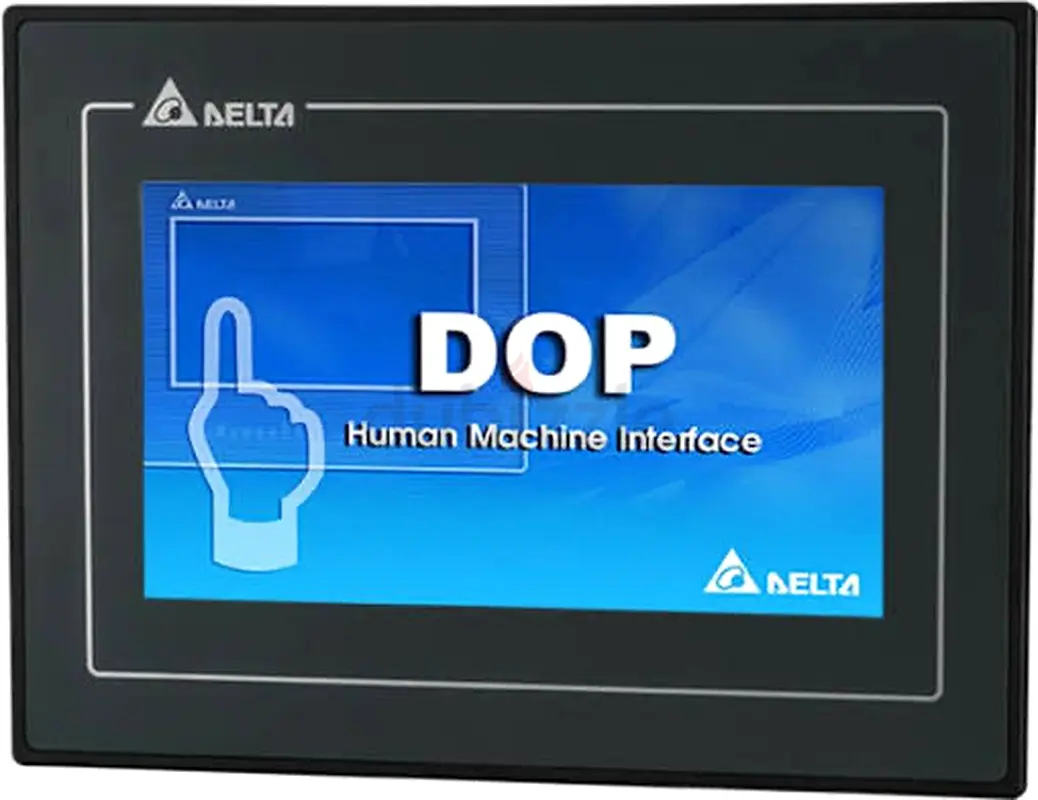

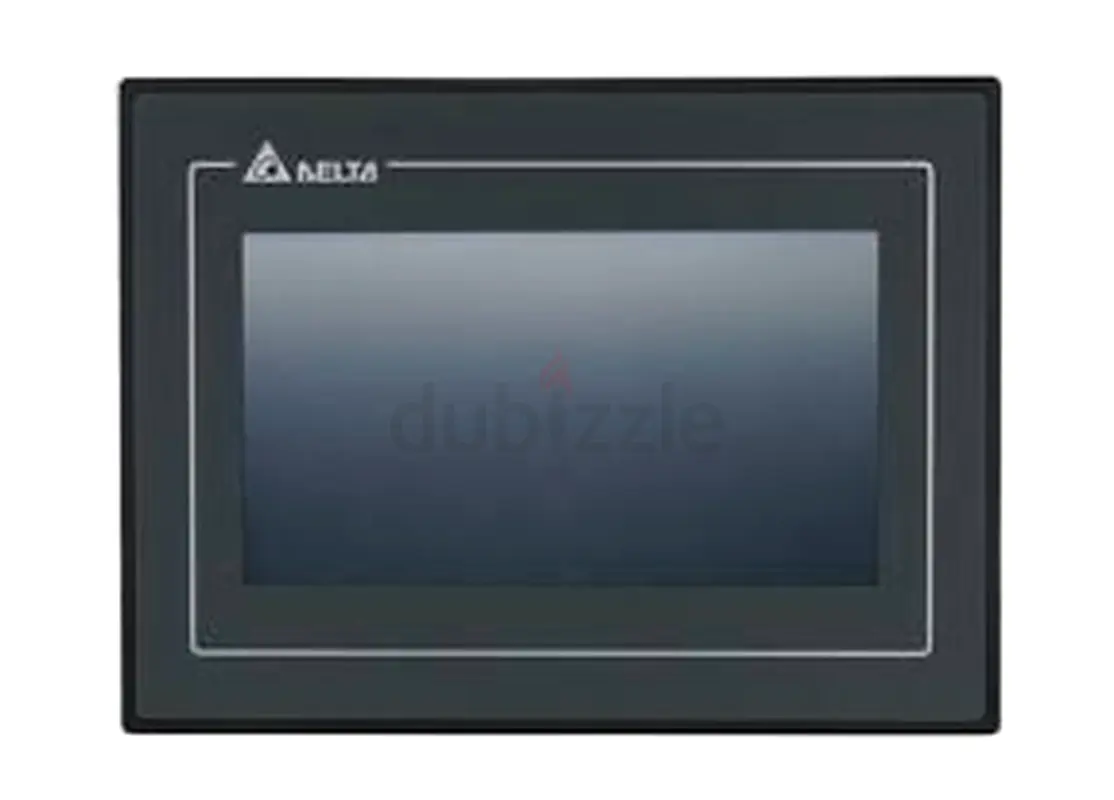

. Delta HDMI touch screen panel mode DOP-107BV. 7″ TFT LCD display with 65,536 colours (16-bit)
